CMOS: The "power-saving king" among chips, you use it every day but may not know it!

The core "brains" of the phones, computers, and smart devices we use every day all harbor a crucial foundational technology: CMOS.

Although it's relatively unknown, it's a hidden champion of modern electronics! Today, let's demystify CMOS and learn about its often-mentioned yet often unclear key terms.

1. What is CMOS?

CMOS (Complementary Metal-Oxide-Semiconductor) is a mainstream semiconductor manufacturing process technology. Its core lies in the simultaneous use of N-type and P-type MOSFET transistors (see below), which work together in a "complementary" manner.

✅ Simply put: It's like two people working together to push and pull a door—one pushing, the other pulling—achieving seamless and effortless coordination.

II. Detailed Explanation of Key Terms: Understanding the Basics of Chip Principles

MOSFET (Metal Oxide Semiconductor Field-Effect Transistor)

NMOS (N-type MOSFET): Conducts at a positive gate voltage (current flows from the drain to the source).

PMOS (P-type MOSFET): Conducts at a negative gate voltage (or a low voltage relative to the source) (current flows from the source to the drain).

Definition: The basic building block of CMOS circuits, a semiconductor device that uses electric field effects to control current.

Structure: Primarily composed of a source, drain, gate, and substrate. The gate is isolated from the channel by a thin layer of insulating oxide.

Operating Principle: A voltage applied to the gate controls the conduction (on) and disconnection (off) of the channel between the source and drain.

Type:

Complementary

Definition: In CMOS circuits, for each logic function (such as an inverter), both an NMOS transistor and a PMOS transistor are included and used symmetrically.

Advantages: This is the core of CMOS's low power consumption! When one transistor is on, the other is necessarily off. In quiescent mode, almost no current flows directly from the power supply to ground, resulting in extremely low power consumption.

Logic Gate

CMOS Inverter (NOT Gate): Consists of a PMOS transistor and an NMOS transistor, and is the most basic CMOS unit.

CMOS NAND Gate, NOR Gate, etc.: Consists of multiple NMOS and PMOS transistors.

Definition: A circuit unit that implements basic logic operations (such as AND, OR, and NOT).

CMOS Implementation: Constructed through a clever combination of NMOS and PMOS transistors. For example:

Static Power / Standby Power

Definition: The power consumed when a circuit is in a stable state (no signal transitions).

CMOS Advantages: Ideally, in steady state, at least one MOS transistor is completely off, resulting in theoretically zero static power consumption (though a small amount of leakage current may exist in practice).

Dynamic Power

Charge and Discharge Power: The energy consumed by charging and discharging load capacitance (including gate capacitance and wiring capacitance) (the main component).

Short-Circuit Power: During the switching transition, both the NMOS and PMOS transistors may briefly conduct simultaneously, resulting in a transient current flow from the power supply to ground.

Definition: The power consumed by a circuit during a switching transition (when the signal changes from 0 to 1 or 1 to 0).

Main Source:

Simplified Formula: P_dynamic ≈ α * C * V² * f (α: switching activity factor, C: load capacitance, V: supply voltage, f: clock frequency). Reducing voltage V is the most effective way to reduce dynamic power!

Noise Margin

Definition: A measure of a circuit's resistance to input noise interference, indicating how much the input voltage can deviate from its ideal value without causing output errors.

Importance: A higher noise margin means a circuit is more stable and reliable in noisy environments. CMOS circuits generally have a good noise margin.

Integration Density

Definition: The number of transistors that can be integrated per unit chip area.

Advantages of CMOS: CMOS's relatively regular structure and mature manufacturing process (especially with the continuous reduction of feature sizes, such as 7nm, 5nm, and 3nm processes) enable extremely high integration densities and the manufacture of very large-scale integrated circuits (VLSI).

Moore's Law

Definition: Proposed by Gordon Moore, one of the founders of Intel, its core prediction is that the number of transistors that can be accommodated on an integrated circuit will double approximately every two years (often expressed as 18-24 months) while costs decrease.

The Role of CMOS: CMOS technology has been the primary engine driving the continued development of Moore's Law over the past few decades. The ever-shrinking CMOS process node has enabled continuous improvements in chip performance, reduced power consumption, and controlled costs.

Why is CMOS so important? Summary of its core advantages

Ultra-low power consumption (especially low static power consumption): This is the key to CMOS's success in battery-powered devices (mobile phones, laptops, IoT)!

High noise tolerance: Strong interference immunity and stable operation.

High integration: Enables the manufacture of extremely complex and powerful chips.

Good voltage swing: Output levels are close to the power supply voltage (VDD) and ground (GND), ensuring clear logic levels.

Mature manufacturing process and scalability: Continuous process improvements continue to drive performance improvements and cost reductions.

IV. CMOS is Ubiquitous: Application Scenarios

Microprocessors (CPUs) and Graphics Processing Units (GPUs): The brains of mobile phones, computers, and servers.

Memory: SRAM (static random access memory), DRAM (dynamic random access memory; although the core is a capacitor, the peripheral control circuits are CMOS), and Flash memory control circuits.

Application-Specific Integrated Circuits (ASICs): Chips customized for specific applications.

Field-Programmable Gate Arrays (FPGAs): The foundation of programmable logic devices.

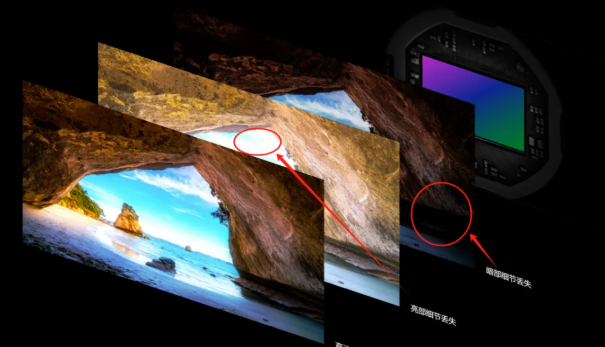

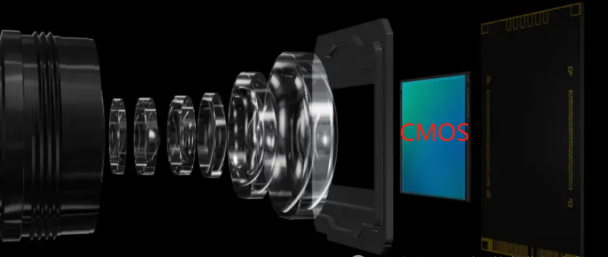

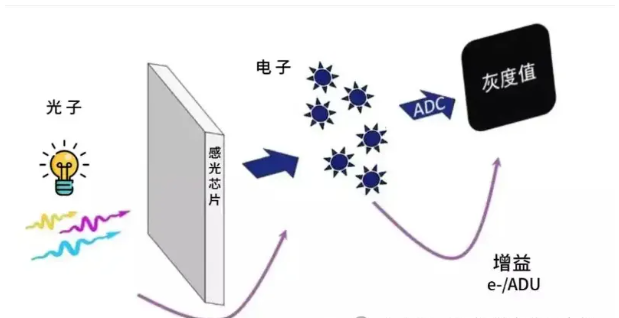

Sensors (such as CMOS Image Sensors - CIS): The heart of mobile phone cameras (although the principles are different, they are manufactured using CMOS processes).

Various digital logic chips, power management chips, and radio frequency chips...

V. Common Misconceptions Clarified

CMOS ≠ BIOS Settings: The CMOS chip (usually referring to a battery-backed RAM) on a computer motherboard stores BIOS settings. It's called CMOS because the RAM chip itself is manufactured using a CMOS process (due to its ultra-low power consumption, the battery can retain data for years). CMOS refers to the chip's manufacturing technology itself, not the chip or the settings it stores.

Conclusion

CMOS technology, the "master of power saving" and "master of integration" hidden deep within the chip, is the cornerstone of modern digital electronics. It achieves a perfect balance between performance and power consumption through the wisdom of "complementarity."

From the phone in your pocket to the servers that power the internet to the spacecraft that explore space, CMOS technology silently plays an irreplaceable role. Understanding these basic terms can provide a clearer perspective on this intelligent era built on silicon.

Technology Interaction:

The devices you use right now contain at least billions of CMOS transistors. Can you guess how they complement and collaborate to bring this article to you? Leave a comment to discuss!
